4-20mA to frequency pulse signal isolation transmitter (I/F V/F converter)4-20mA/0-10V to 0-5KHZ/0-10KHZ I/F converter

4-20mA to frequency pulse signal isolation transmitter (I/F converter)selection example:

4-20mA to frequency signal isolation transmitter (V/F converter)Features:
Low cost, international standards DIN35mm rail mounting
three-port isolation (input, output and power supply )
High accuracy (0.1% F.S, 0.2% F.S)
High linearity (0.1% F.S)
High isolation voltage (2500VDC/60S)
Low temperature drift (35PPM / Celsius)
Wide industrial class operation temperature (-45~+85Celsius)
High reliability (MTBF>50 Wan hour)
Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
International standard signal input (0~5V/0~10V/1~5V/4~20mA/0~20mA) etc.
Standard signal input (0~5KHz/0~10KHz/1~5KHz etc.)
Passed CE Certificate

V/F converterGeneral Description:

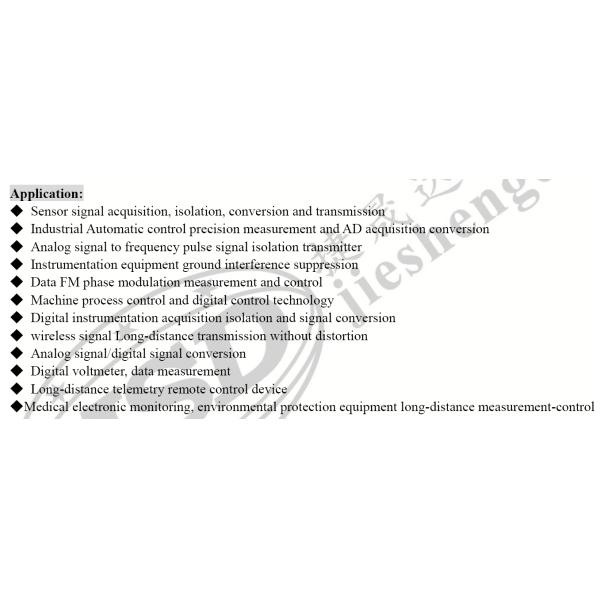

Jie Shengda Technology JSDTAF-1001S series analog to frequency signal isolation transmitter is a precision isolation transmitter.it can isolate and transform the inputting analog voltage (or current) signal into corresponding digital pulse frequency . The product is isolated between power supply, input, output and isolated power, the isolated voltage between them is up to 2500VDC. The isolation transmitter is widely used in phase modulation, frequency modulation, analog/digital conversion, digital voltmeter, data measurement and remote telemetry remote control device. The product has been corrected, the transmitter isolation adopts international standard DIN35mm rail installation, user can install it directly. If the product fails to meet user, we provide customized

rail type: RAIL MOUNTING

SIZE:115x100x12.5mm
